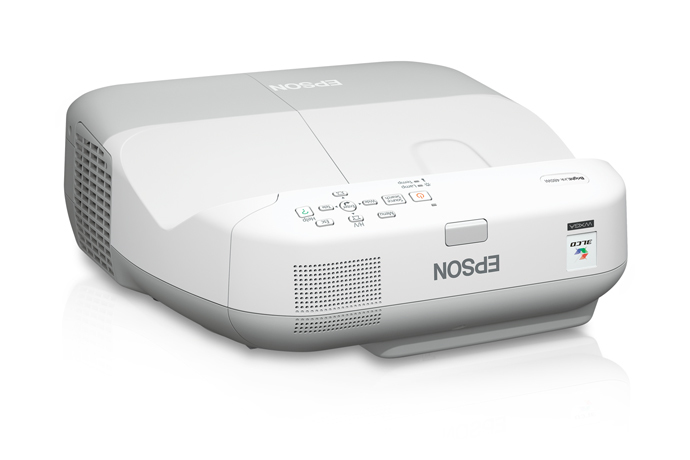

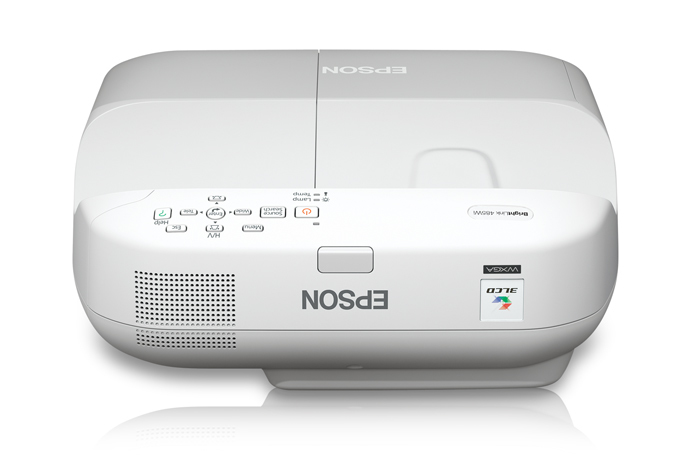

Epson EB-485Wi LCD Ultra Short Throw Interactive Widescreen Projector
DISCONTINUED
FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE
Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw and interactive projection technology just got a whole lot better, thanks to the latest innovations from the market leader – Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, more flexible and user friendly mounting, plus the most innovative interactivity features available!
No driver installation required – Installation has never been easier
Self-Calibration – Interactive projectors that calibrate themselves for you
Advanced Networking Capability – Enables users to monitor, control and present from a remote location
Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows, network and optional wireless connectivity
Lowest Epson Lamp Price Ever Seen – Incredibly low price of only $79 inc GST (RRP. Aust)
16W Built-in Speaker – Built in audio with the power to fill a classroom
Range at a Glance
EB-475Wi
EB-485Wi
White Light Output
2,600 lumens
3,100 lumens
Colour Light Output
2,600 lumens
3,100 lumens
Resolution
WXGA
WXGA
HDMI Connectivity
Yes
Yes
Integrated Mount Included
Yes
Yes
Multi-user interactivity
Yes
Yes
PC Free Annotation
Yes
Yes
Network Functionality
Yes
Yes
Wireless Functionality
Optional
Optional
Low Cost Replacement Lamp
Yes
Yes
Education Specific Model
N/A
N/A
FEATURES AND BENEFITS:
Upgrade to Ultra Short Throw Capable of producing an interactive image size anywhere from 60” up to 102” diagonal (native WXGA) on nearly any wall, the Epson EB-475Wi delivers an amazing interactive work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with 2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.

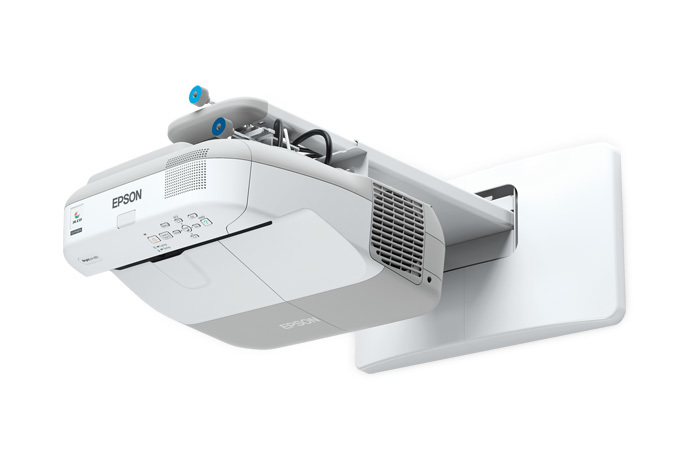

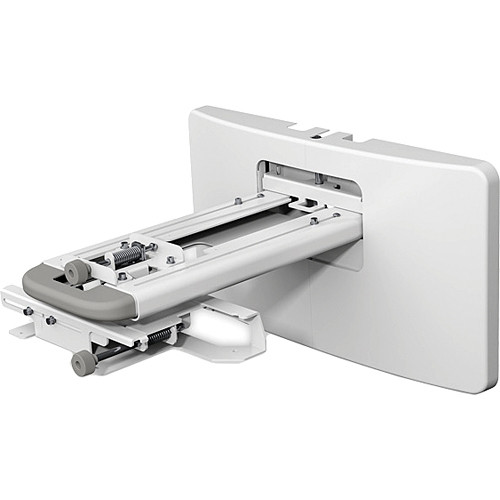

Total Ease of Installation The EB-485Wi comes complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image correction images projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.
With the EB-485Wi there is no need to install any additional driver software. This opens new opportunities to users in institutions where computers are locked to stop the installation of software. In fact, you don’t need to calibrate! These projectors perform an auto calibration, delivering high accuracy, fast response and reliable performance.
An Interactive Workspace for Collaboration The EB-485Wi can also project vertically downward, enabling users to change a table top into a workspace perfect for collaboration. By utilising the optional ELP-MB29 table mount, your ordinary table becomes a centre for creative collaboration that will have your team racing to engage in the material at hand.
Interactive Functionality with Multi User Capability In the past, you needed a projector and an interactive whiteboard to create an interactive environment in a meeting room or class room. Now, you can make almost any wall interactive with the EB-475Wi.
These high performance “projector and interactive-pen” combinations each integrate interactive functionality into one machine. With no requirement for an interactive whiteboard, you can utilise an existing pen-based whiteboard or even a flat wall for full colour presentations, interactive brainstorming sessions, annotation on-the-fly and much more. With the EB-475Wi and their easy to use (Easy Interactive Tools 2) software (via download from www.epson.com.au) you can turn your whiteboard into a fully interactive business or teaching tool. At the end of your class or meeting, simply save the file for printing or emailing to students and attendees.
Revolutionise the way you interact with your class or audience by utilising the Multi User capability. Each EB-475Wi ships with two interactive pens, both of which can be used simultaneously. Take advantage of new opportunities for interactive learning with teacher and students writing or interacting together, each with their own independent interactive pen.
Instant Annotation – Interactivity without a PC! With the EB-485Wi, you no longer have to wait for a PC to start up when you want to handwrite notes and diagrams on a whiteboard or annotate over an image from a source other than a PC such as a Document Camera or DVD player. We call it Instant Annotation. Simply turn on the projector, and utilize the Easy Interactive Tools 2 software. It’s fast, easy and always ready for notes on-the-fly.
Advanced Networking It’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.
Wireless Connectivity(Optional) With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.
Low Cost of Ownership The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP. This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
Direct Connect to ELP-DC06 Further enhancing suitability to the modern education environment is the ability for the EB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

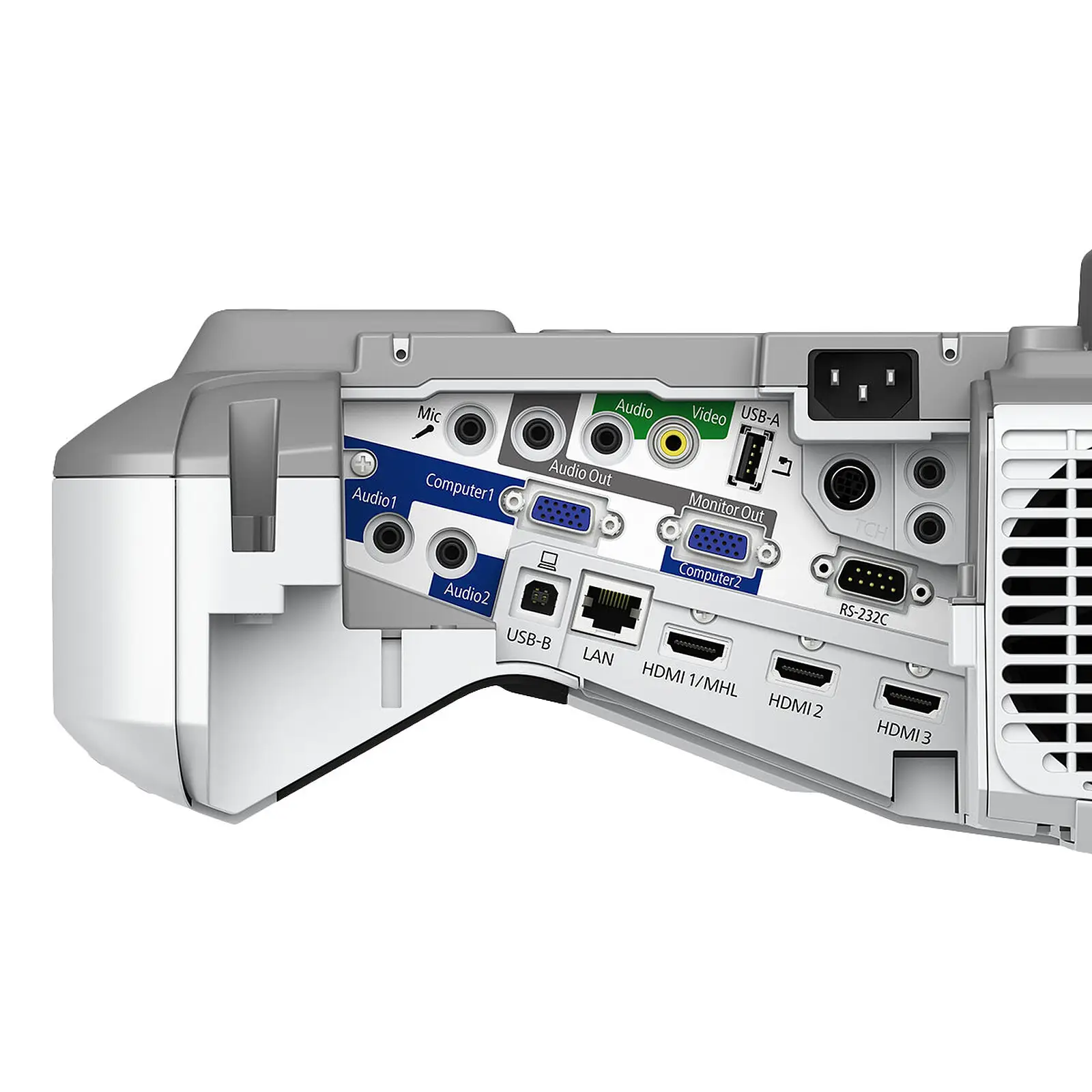

Connectivity Panel:
Specifications
PRODUCT NAME
Epson EB-485Wi
PRODUCT CODE
V11H452053
WHAT'S IN THE BOX
Projector including 5m Power Cable, 5m USB A - USB B cable, Remote Control, Batteries x 4, Easy Interactive Pen x 2, Projector Software Ver. 1.03b (CD ROM), Projector Software for Easy Interactive Function Ver. 2.00 (CDROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet, Pen Tray.
TECHNOLOGY
Projection System
Epson 3LCD, 3-chip technology
LCD Panel
0.59-inch with MLA
OPTICAL
Zoom
1 - 1.35 (Optical Zoom)
Screen Size
60" to 102"
Projection Distance
74.3" screen 0.438m
Throw Ratio
0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
Projection Lens F Number
1.80
Projection Lens Focal Length
3.71mm
Focus Method
Manual Focus
Offset
6.0:-1
Colour Light Output
3,100 Lumens
White Light Output
3,100 Lumens
Resolution
WXGA
Native Aspect Ratio
16:10
Contrast Ratio
3,000:1
Lamp Hours
Normal/Eco: 3,000/4,000 Hours
Lamp Type
215W UHE
Keystone Correction
Vertical: -5 to +5 degrees Horizontal: -5 to +5 degrees
CONNECTIVITY
Input: Video
1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer
2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device
USB Type A Ver.2.0
Input: Three-In-One USB Display
1 x USB 2.0 type B
Input: Digital
1 x HDMI
Input: Audio
1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control
1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera
1 x USB 2.0 type B
Network I/O:
RJ45 x 1 (100Mbps)
Wireless Connectivity
Optional
Output: Video
D-sub 15 pin (monitor out black moulding)
Output: Audio
Stereo mini jack x 1
Speaker Output
16W
ADVANCED FEATURES
EasyMP Network & Control
Yes
EasyMP Network Projection
Yes
PC Free Presentations
No
USB Plug 'n Play
Yes
AV Mute Slide
No
Instant Off
Yes
Direct Power On/Off
Yes
Security
Kensington®-style lock provision Padlock & Security cable hole Wireless LAN unit lock Password protect function
Colour Modes
Dynamic, Theatre
GENERAL
Dimensions D x W x H
375 x 367 x 143mm
Weight
5.4kg
Lamp Warranty
12 months or 750 hours*
Projector Warranty
3 Years
Power Consumption: Lamp on
Normal: 300W / Eco: 215W
Power Consumption: Standby
0.27W (communication off)
Noise Level
Normal: 35dB / Eco: 28dB
Supplied Accessories
